Clear Cold Shrink Silicone Rubber Tubing CPS-C Series - Color Transparent
Description

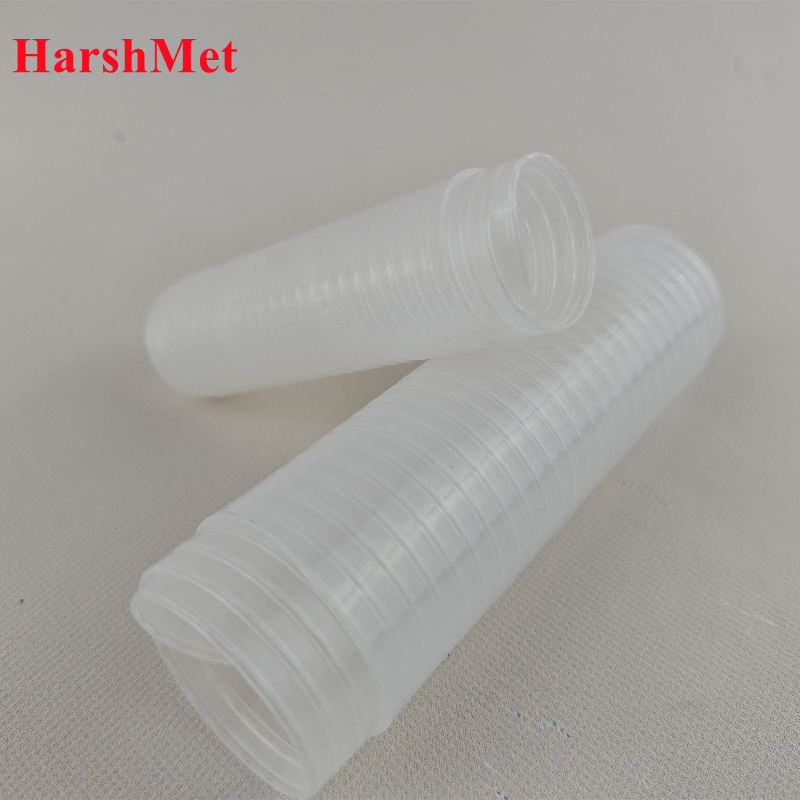

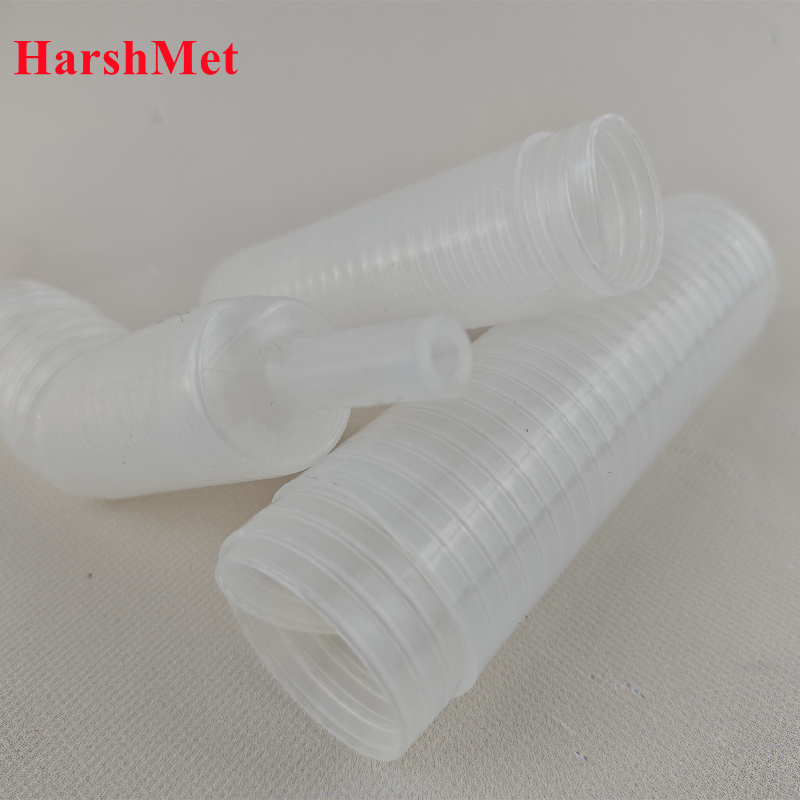

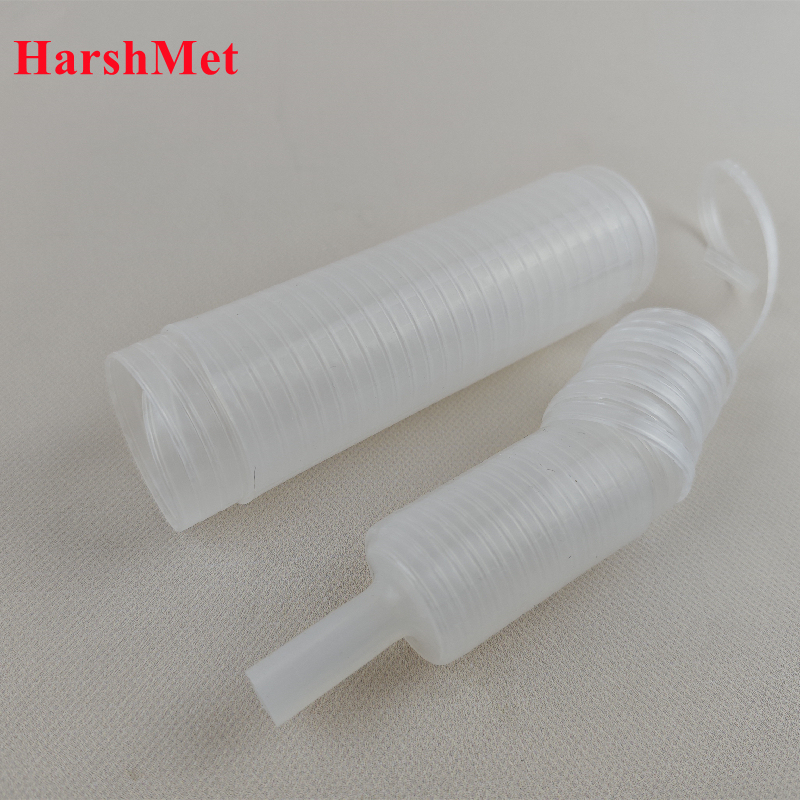

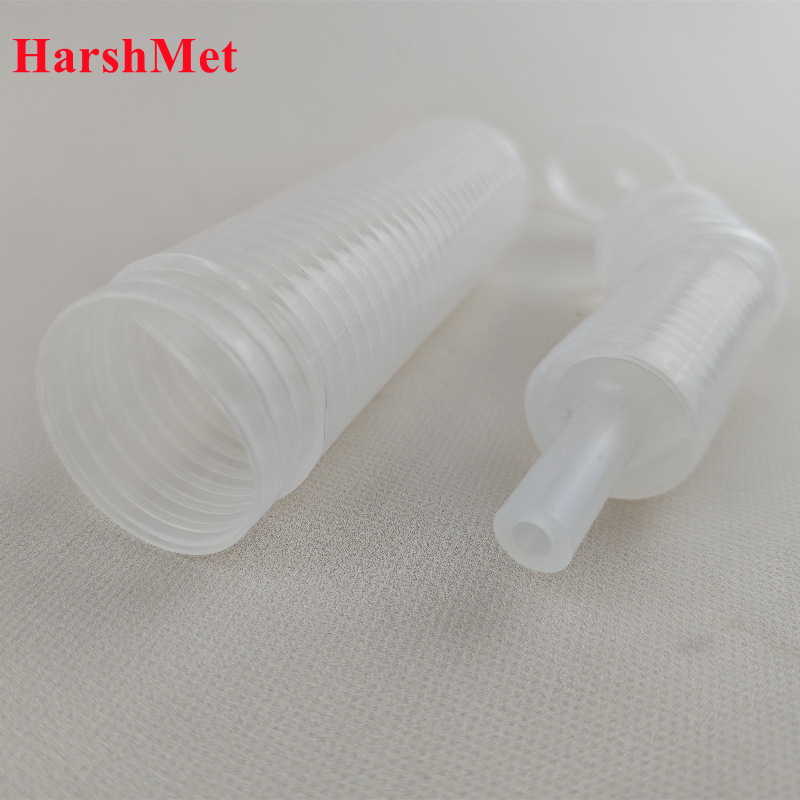

HarshMet now is the leading OEM cold shrink sleeve supplier in China, our Cold Shrink Connector Insulators CPS-c Series are open-ended, silicone rubber, tubular sleeves. The sleeves are factory expanded and assembled on a removable supporting plastic core. Each rubber assembly is supplied for field installation in this pre-stretched condition. As the core is unwound, the insulating sleeve shrinks to form a tight seal. Three sizes of Cold Shrink Insulators cover terminal lug barrels and inline connectors. CPS series cold shrink tubes, available in various colors, are widely used in telecommunications, electrical, cable splices, cable termination, and other industrial applications.
Typical Properties
|
Properties |
Typical Data |
Test Method |
|
Hardness |
49 Shore A |
ASTM D2240 |
|
Tensile Strength |
11.8 MPa |
ASTM D 412-75 |
|
Elongation at Break |
997% |
ASTM D 412-75 |
|
Tear Strength |
49N/mm |
ASTM D624B |
|
Dielectric Strength |
19.1KV/mm |
ASTM D149 |
|
Specific Gravity |
1.23 |
/ |
|
Volume Resistivity |
9×1015 Ω.cm |
GB/T1410 |
|
Flammability |
V-0 |
UL 94 |
|
Heat Aging |
Pass |
ASTM D412 |
|
UV Aging |
Grey scale grade 3-4 |
ASTM G154 |
CPS Cold Shrink Selection Table
|
Product Number |
I.D of Supporting Core( ØD) (mm) |
Application Range (Min**.~Max***.) (mm) |
Length After Shrink (mm) |
Material |
|
CPS-C20-6 |
Ø20 |
6-17 |
152 |
Silicone |
|
CPS-C20-7 |
Ø20 |
6-17 |
178 |
Silicone |
|
CPS-C20-8 |
Ø20 |
6-17 |
203 |
Silicone |
|
CPS-C25-7 |
Ø25 |
7.3~21 |
178 |
Silicone |
|
CPS-C25-8 |
Ø25 |
7.3~21 |
203 |
Silicone |
|
CPS-C28-5 |
Ø28 |
6~25 |
125 |
Silicone |
|
CPS-C28-6 |
Ø28 |
6~25 |
150 |
Silicone |
|
CPS-C32-4.9 |
Ø32 |
10.5-26 |
125 |
Silicone |
|
CPS-C32-6 |
Ø32 |
10.5-26 |
150 |
Silicone |
|
CPS-C32-7 |
Ø32 |
10.5-26 |
178 |
Silicone |
|
CPS-C32-8 |
Ø32 |
10.5-26 |
203 |
Silicone |
|
CPS32-C-10 |
Ø32 |
10.5-26 |
254 |
Silicone |
|
CPS-C35-7 |
Ø35 |
10.5~30 |
178 |
Silicone |
|
CPS-C35-8H |
Ø35 |
10-30 |
203 |
Silicone |
|
CPS-C35-9 |
Ø35 |
10.5~30 |
229 |
Silicone |
|
CPS-C35-10 |
Ø35 |
10.5~30 |
254 |
Silicone |
|
CPS-C35-12 |
Ø35 |
10.5~30 |
305 |
Silicone |
|
CPS-C40-6 |
Ø40 |
11.70~35 |
150 |
Silicone |
|
CPS-C40-7.08 |
Ø40 |
11.70~35 |
180 |
Silicone |
|
CPS-C40-8 |
Ø40 |
11.70~35 |
203 |
Silicone |
|
CPS-C40-9 |
Ø40 |
11.70~35 |
230 |
Silicone |
|
CPS-C40-10 |
Ø40 |
11.70~35 |
254 |
Silicone |
|
CPS-C40-12 |
Ø40 |
11.70~35 |
305 |
Silicone |
|
CPS-C45-6 |
Ø45 |
13.5~39 |
152 |
Silicone |
|
CPS-C45-7 |
Ø45 |
13.5~39 |
178 |
Silicone |
|
CPS-C45-8 |
Ø45 |
13.5~39 |
203 |
Silicone |
|
CPS-C45-10 |
Ø45 |
13.5~39 |
254 |
Silicone |
|
CPS-C45-12 |
Ø45 |
13.5~39 |
305 |
Silicone |
|
CPS-C50-6 |
Ø50 |
16.6~43 |
150 |
Silicone |
|
CPS-C50-10 |
Ø50 |
16.6~43 |
254 |
Silicone |
|
CPS-C50-12 |
Ø50 |
16.6~43 |
305 |
Silicone |
|
CPS-C50-18 |
Ø50 |
16.6~43 |
457 |
Silicone |
|
CPS-C65-7 |
Ø65 |
25-59 |
180 |
Silicone |
|
CPS-C65-7.5 |
Ø65 |
25-59 |
190 |
Silicone |
|
CPS-C65-10 |
Ø65 |
25-59 |
254 |
Silicone |
|
CPS-C68-5 |
Ø68 |
21.9~62 |
125 |
Silicone |
|
CPS-C68-6 |
Ø68 |
21.9~62 |
150 |
Silicone |
|
CPS-C68-10 |
Ø68 |
21.9~62 |
254 |
Silicone |
|
CPS-C68-14 |
Ø68 |
21.9~62 |
355 |
Silicone |
|
CPS-C68-18 |
Ø68 |
21.9~62 |
457 |
Silicone |
|
CPS-C68-10 |
Ø68 |
21.9~62 |
508 |
Silicone |
|
CPS-C77-6 |
Ø77 |
27.5~70 |
152 |
Silicone |
|
CPS-C77-7 |
Ø77 |
27.5~70 |
180 |
Silicone |
|
CPS-C77-9 |
Ø77 |
27.5~70 |
229 |
Silicone |
|
CPS-C77-12 |
Ø77 |
27.5~70 |
305 |
Silicone |
|
CPS-C77-13 |
Ø77 |
27.5~70 |
330 |
Silicone |
|
CPS-C77-18 |
Ø77 |
27.5~70 |
457 |
Silicone |
|
CPS-C105 |
Ø105 |
42~98 |
152 |
Silicone |
|
CPS-C105 |
Ø105 |
42~98 |
203 |
Silicone |
|
CPS-C105 |
Ø105 |
42~98 |
229 |
Silicone |
|
CPS-C105 |
Ø105 |
42~98 |
254 |
Silicone |
|
CPS105 |
Ø105 |
42~98 |
305 |
Silicone |
|
CPS105 |
Ø105 |
42~98 |
457 |
Silicone |
|
……. |
|
|
|
|
Note: 1). Customized Sizes are available on your request
2). Standard colors come in Black and Deep Grey
3). **Minimum=Seal Diameter, ***Maximum=Max. Connector or Cable O.D
