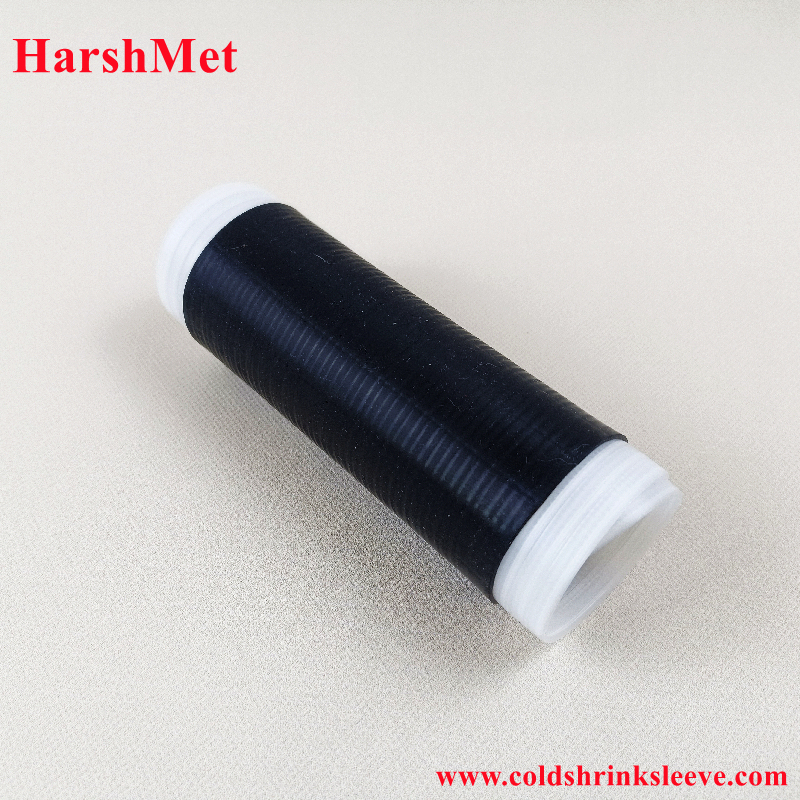

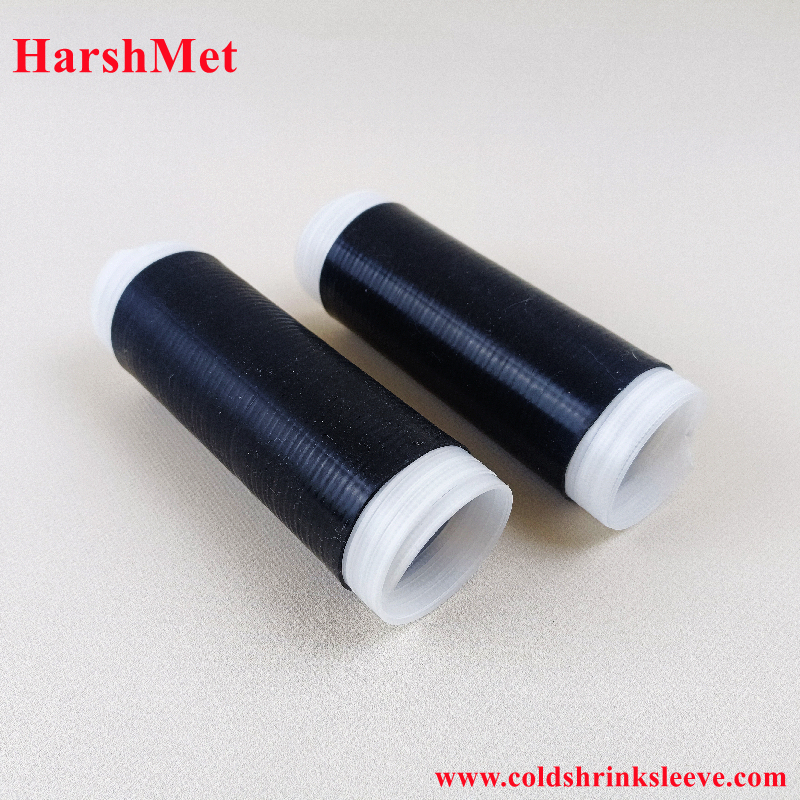

Name: Cold Shrink Tubing CST Series for Wireless Site Markets, OEM Cold Shrink Sleeve
Brand: Cold Shrink Sleeve Silicone & EPDM Cold Shrink Tube Manufacturer
SKU: CST Series
Availability: InStock
Rating: 5 (1 reviews)

Description

As a leading cold shrink sleeve manufacturer, we supply cold shrink sleeves that are easy to install, corrosion-resistant and suitable for various harsh outdoor and indoor power engineering scenarios.

HarshMet CST Series provide the correct Cold Shrink tube or the correct Cold Shrink tube and special foam tape to make the installation of coax connector seals easy. The installation does not require tooling, and the quality of the installation is less installer dependant

Application

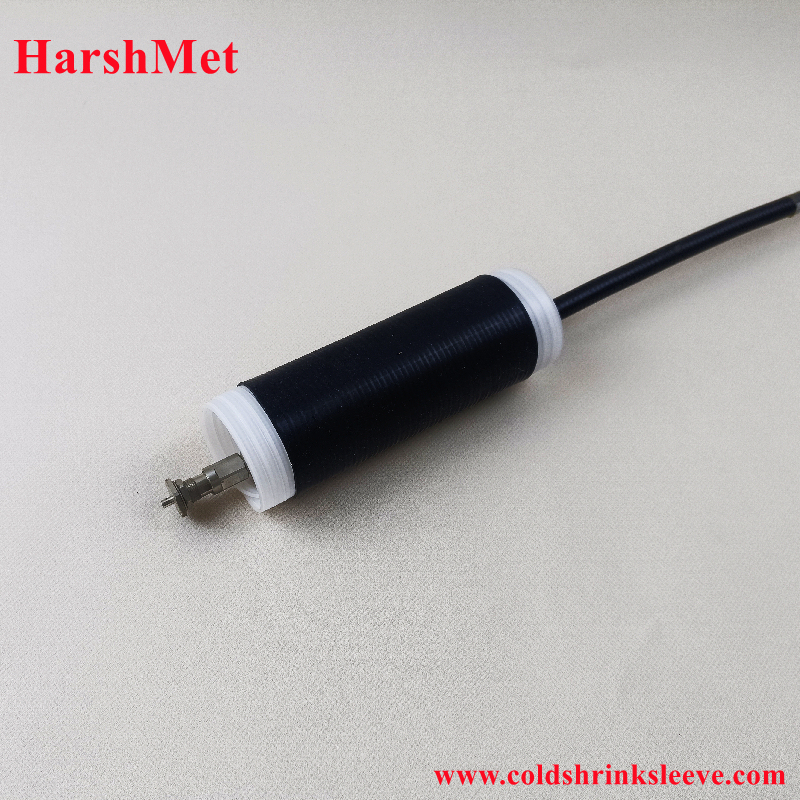

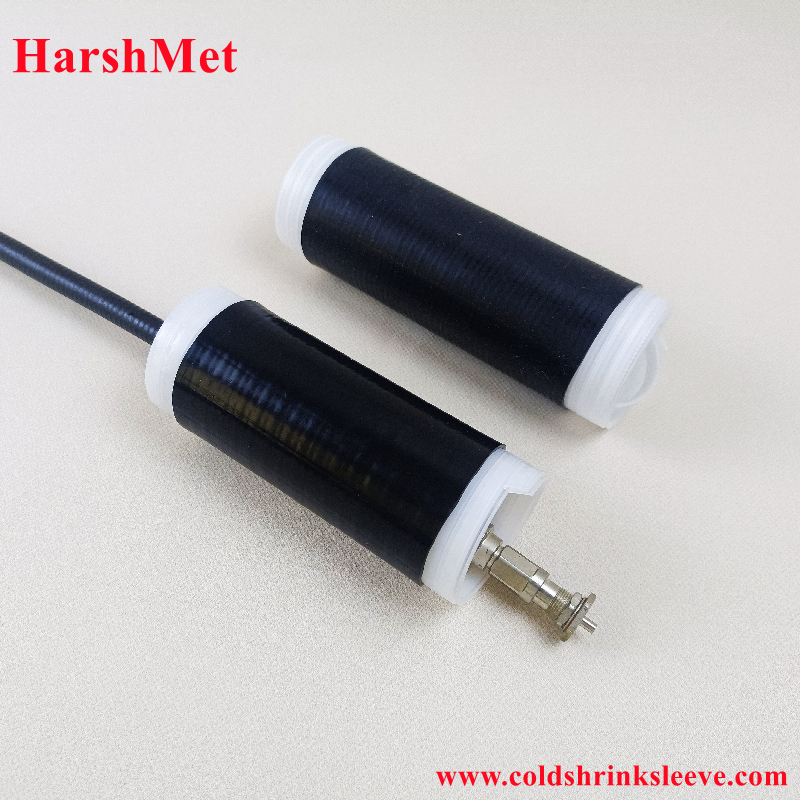

The main application is the sealing of coax connectors used in the wireless communication antenna market. These mainly outside installed connectors require an extra sealing.

Technical Information

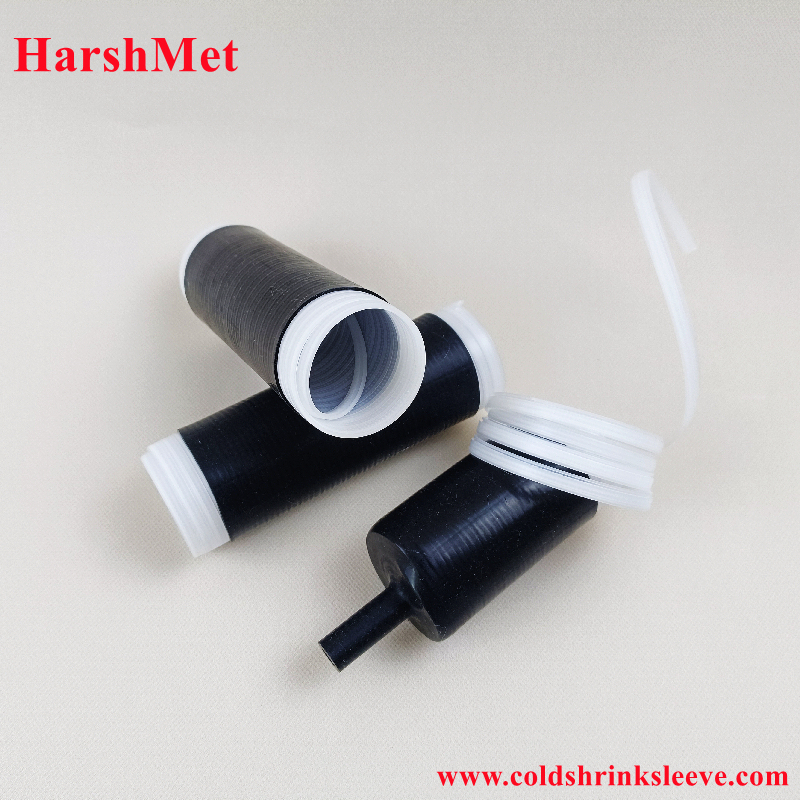

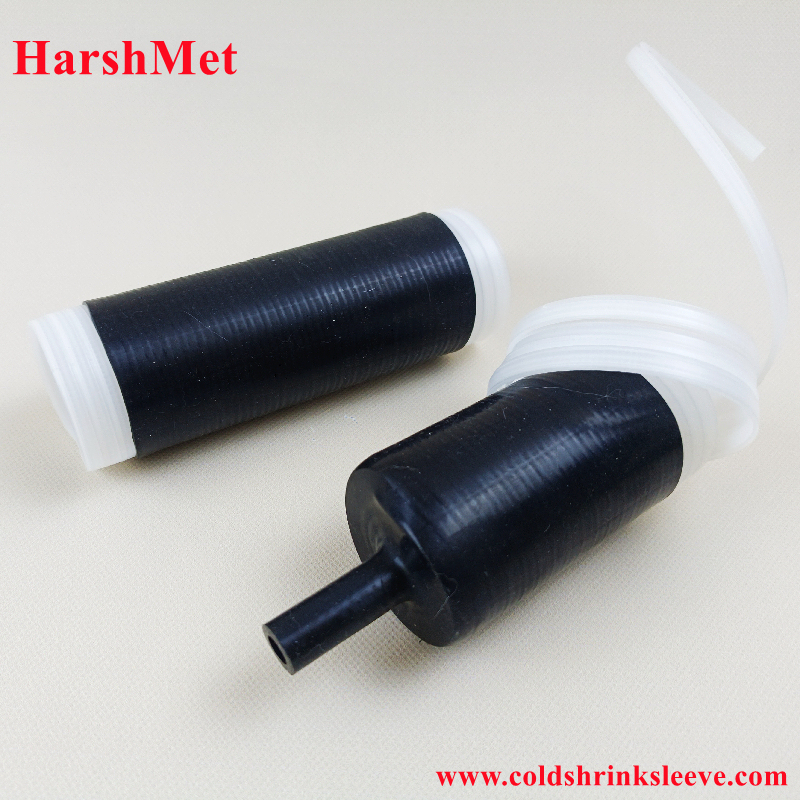

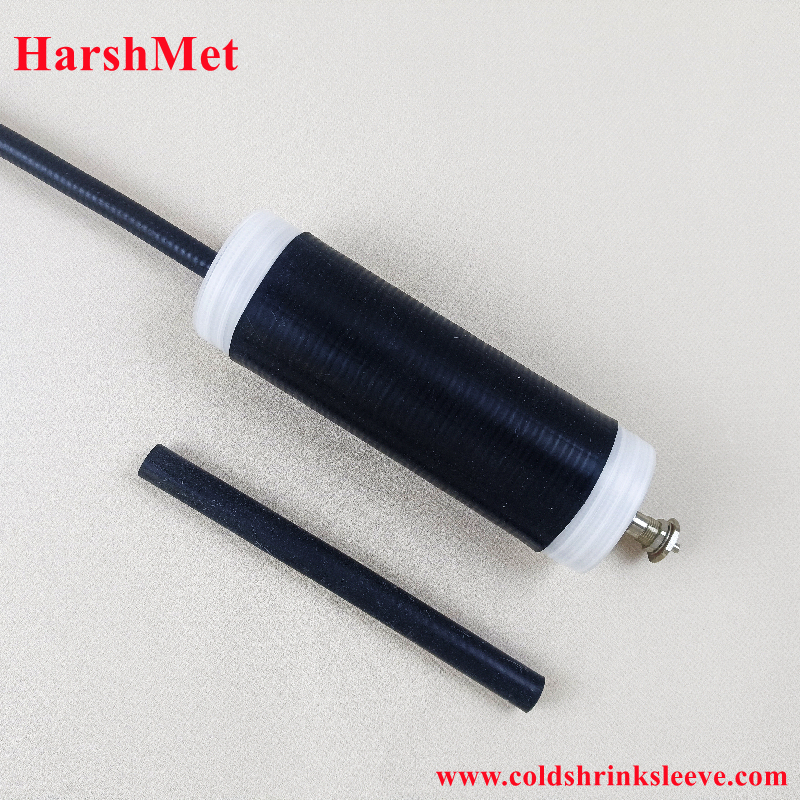

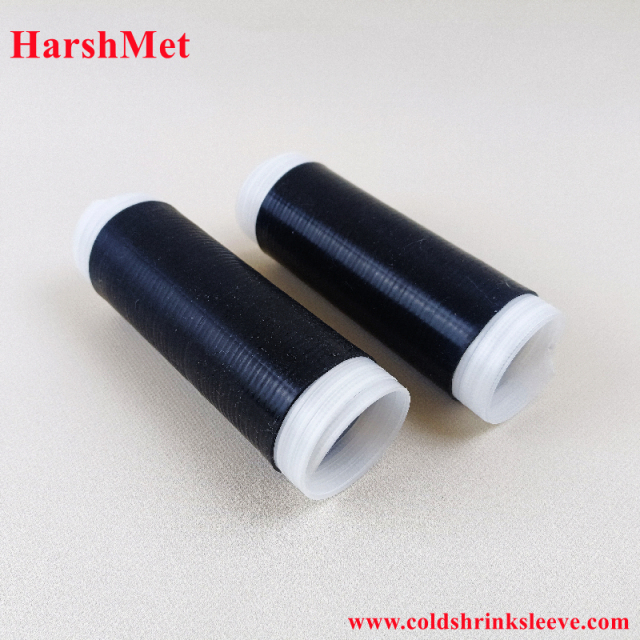

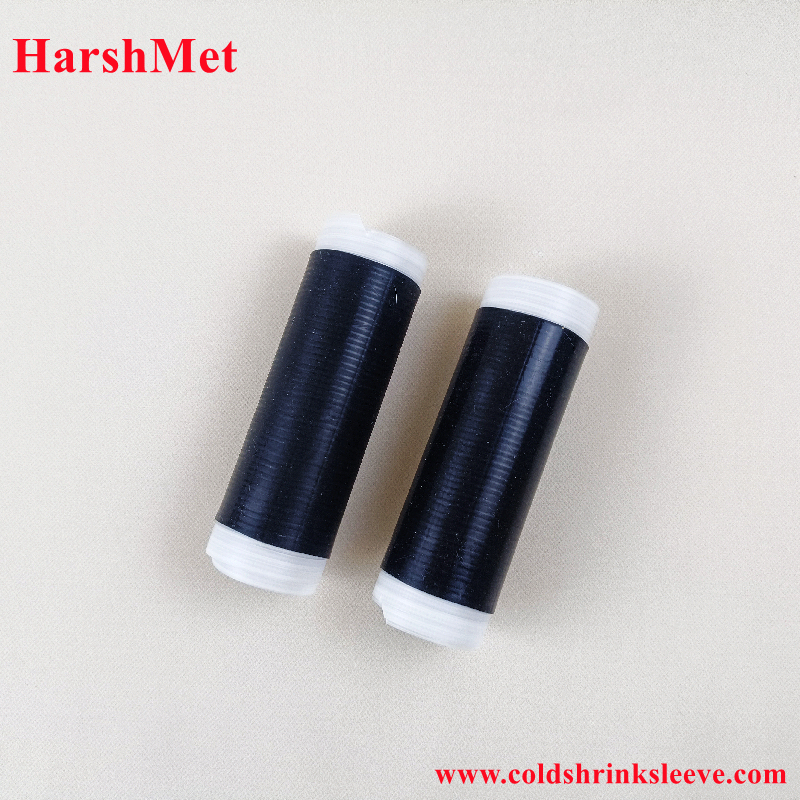

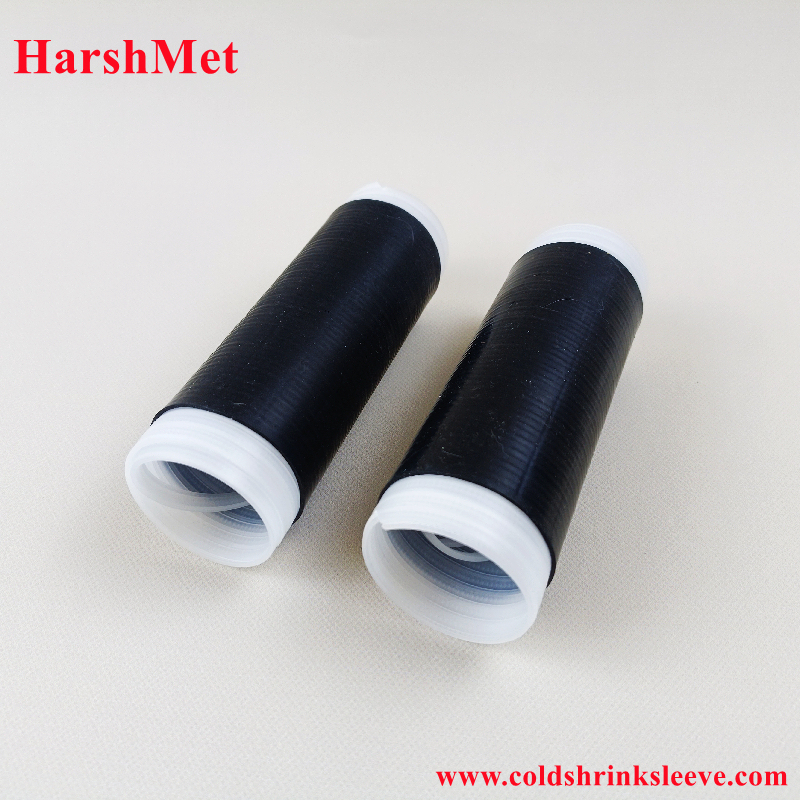

The outer Cold Shrink tube is made from high performance EPDM / Silicone rubber material to provide an excellent seal on the connector. In cases where the different coax cable diameter can not be covered with the tube application range, a special foam is used to increase the smallest cable diameter to fit the shrink performance of the Cold Shrink tube. The kits passed the .5 bares water pressure sealing test and met IEC60529 IP 68

Features

Operating Temperature :-60 ℃~+200℃
Shrink ratio: 2.5:1 ~ 4:1
Colors:Black or Grey
UV and Ozone resistant
Superior tear resistant
Acid and alkalis resistant

Selection Table

P/N	Appication Range	Length	RF Connections	Connector Types	Material	Diameter Building-up Foam Tape
CST-SM A	4-10mm	100mm/60mm	LMR195 to Device	SMA	Modified Silicone Rubber	W/O
CST-N10-225	6.5-19mm	65mm	1/4” Coax to Device	Nex10, 2.2-5,	Modified Silicone Rubber	W/O
CST14MD	7.4-24mm	175mm/ 125mm/ 110mm	1/4” to 1/2” Coax Cable to Antenna, RRU or Other Devices	Mini Din 4.3/10 and 4.1/9.5 and N type Only	Modified Silicone Rubber	W/O
CST-LMR400N	10.5-22	125mm	LMR 400 Coax to N connector	N type connector	Modified Silicone Rubber	W/O
CST14MDN-E	7.4-35mm	150mm	1/4” to Antenna, RRU or Other Device	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified EPDM Rubber	W/
CST38MDN	10.6-35mm	140mm	3/8” to Antenna, RRU, TMA or Other Device	7/16 DIN, Mini Din 4.3/10 , 4.1/9.5 and N Type	Modified Silicone Rubber	W/O
CST12MN+	13-28mm	140mm	1/2” Cable To Antenna, RRU, TMA or other Devices, 1/2” Cable to 1/2” Cable	Mini Din 4.3/10 , 4.1/9.5 or N type Only	Modified Silicone Rubber	W/O
CST12MDN	10-40mm	130/140/150/170/200mm	1/2” to 1/2”, 1/2” to Antenna, RRU Or other Devices or DC Power Connections on RRU	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified Silicone Rubber	W/O
CST12MDN-B	12-39	130mm	1/2” - 7/8” to Antenna , RRU Or other Devices	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified Silicone Rubber	W/O
CST-E1258	11-39mm	250mm	1/2” to 1/2” , 1/2” to 5/8” , 5/8” to 5/8” Cable	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified EPDM Rubber	W/
CST-S1258	11-39mm	250mm	1/2” to 1/2” , 1/2” to 5/8” Cable, 5/8” to 5/8” Cable	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified Silicone Rubber	W/O
CST-1278	13-45mm	250mm	1/2” Cable to 7/8” , 5/8” to 7/8” , 7/8” to 7/8”	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified EPDM Rubber	W/
CST-S1278	13-35	240mm	1/2” Cable to 7/8” , 5/8” to 7/8” , 7/8” to 7/8”	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified Silicone Rubber	W/O
CST-S12114	15-50	330mm	1/2” Cable to 1-1/4” , 5/8” to 1-1/4” , 1-1/4” to 1-1/4”	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified Silicone Rubber	W/O
CST-12114	15-50	330	1/2” Cable to 1-1/4” , 5/8” to 1-1/4” , 1-1/4” to 1-1/4	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified EPDM Rubber	W/
CST-12158	13-63mm	330mm	½” to 1 1/4” or 1 5/8”, 5/8” to 1 1/4” or 1 5/8”	7/16 DIN & Mini Din 4.3/10 Or 4.1/9.5 or N Type	Modified EPDM Rubber	W/

Note: Any other sizes needed, welcome to contact us at sales@harshmet.com

FAQ

Q 1. What is the payment term?
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal.

Q 2. What is the normal lead time for our orders?
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10-15 days, and the average production time after sample approval is 2-2.5 weeks.

Q 3. What is your standard packaging?
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed.

Q 4. Can you tell us your monthly production capability of your products?
A: It depends on the model, we produce more than 3000 tons of rubber materials per month.

Q 5. What kind of certificates do you have?
A1: We have ISO9001 ,ISO14001, ISO 45001
A2: We have various rubber components approved by ROHS and REACH and meet IEC/EN/IP67/IP68/V0

Q6: How to check the quality of bulk order?
A1: We provide pre-production samples to all customers before mass production if needed.
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc.

Q 9: Can you provide custom product service?
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements.
